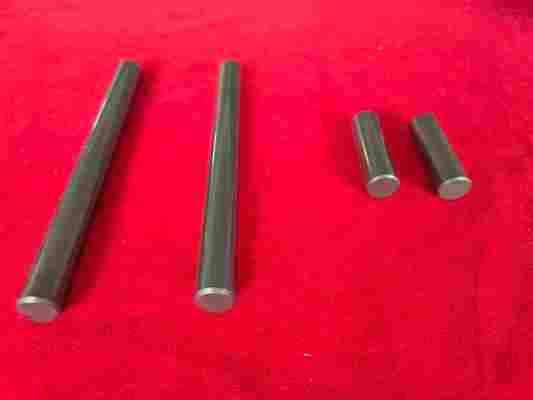

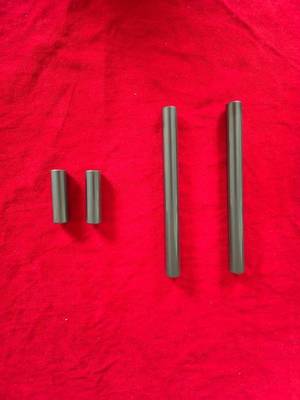

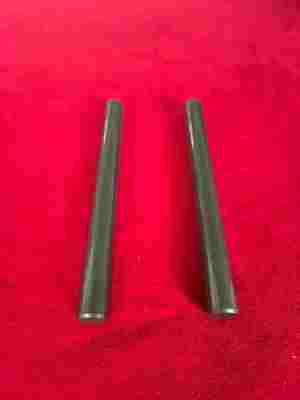

Custom Silicon Carbide Ceramic Shaft for Pumps
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | CSQ |
| 인증 | FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 |
| 모델 번호 | 사용자 정의 |
| 최소 주문 수량 | 20-50 PC |
| 가격 | negotiable |
| 포장 세부 사항 | 폼+카토 톰 박스 |
| 배달 시간 | 20-45 일 |
| 지불 조건 | t/t, t/t |
| 공급 능력 | 한 달에 2000 PC |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 이름 | 요업 샤프트 | 범주 | 고급 구조 세라믹 |
|---|---|---|---|
| 재료 | 세라믹 SSIC SI3N4 AL2O3 ZRO2 | 애플리케이션 | 슬리퍼 |
| 정도 | 도면에 따라 맞춤화되었습니다 | 크기 | 사용자 정의 |
| 페이스 | 폼+카토 톰 박스 | ||
| 강조하다 | custom silicon carbide pump shaft,ceramic shaft for pumps,silicon carbide ceramic pump component |
||
필요한 제품을 선택하고 게시판에서 당사와 소통 할 수 있습니다.
제품 설명

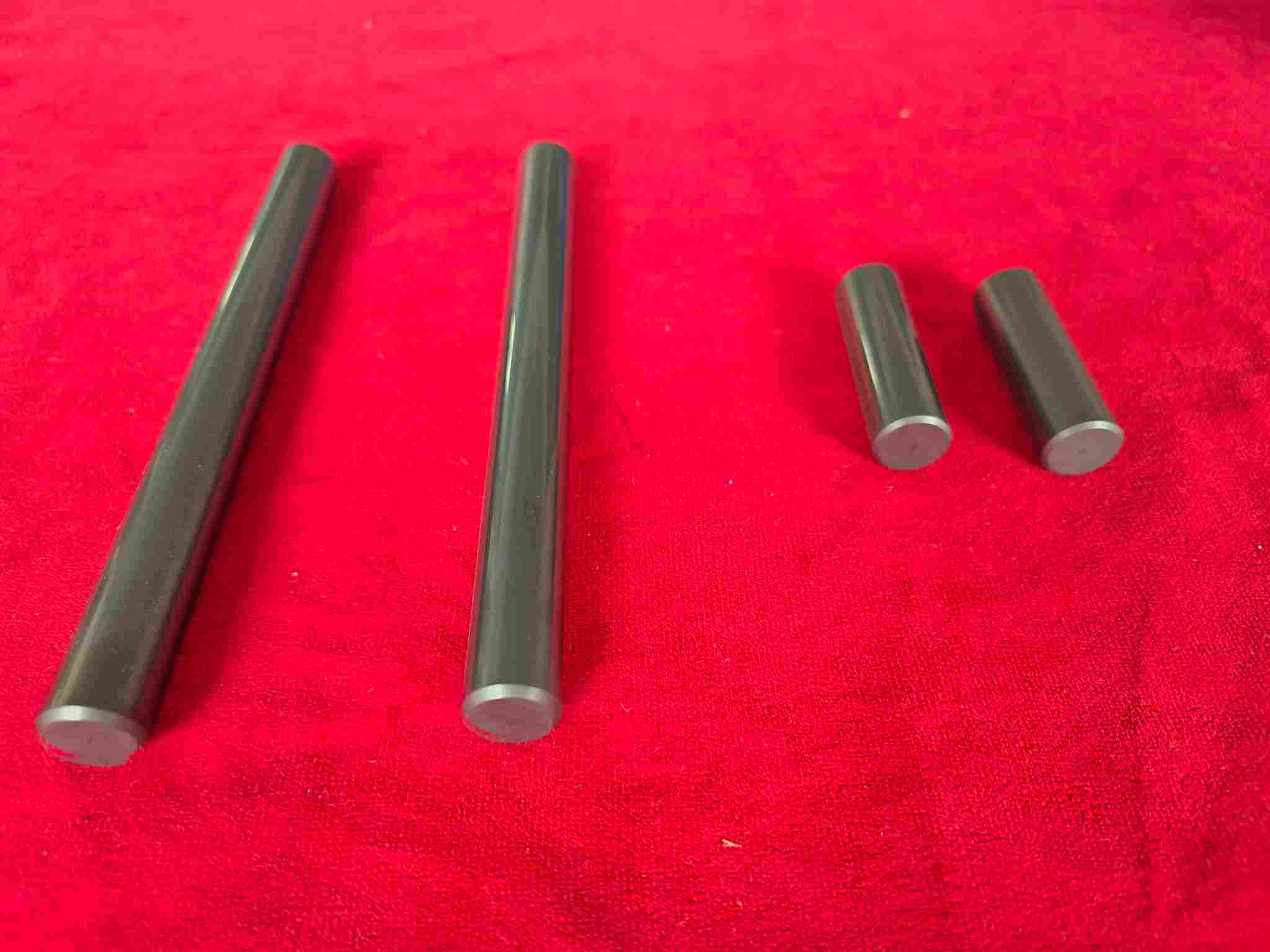

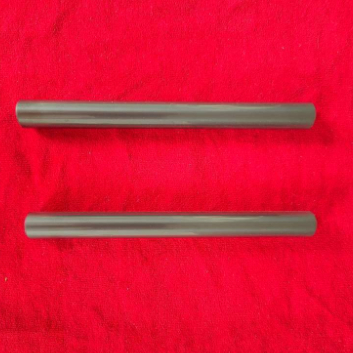

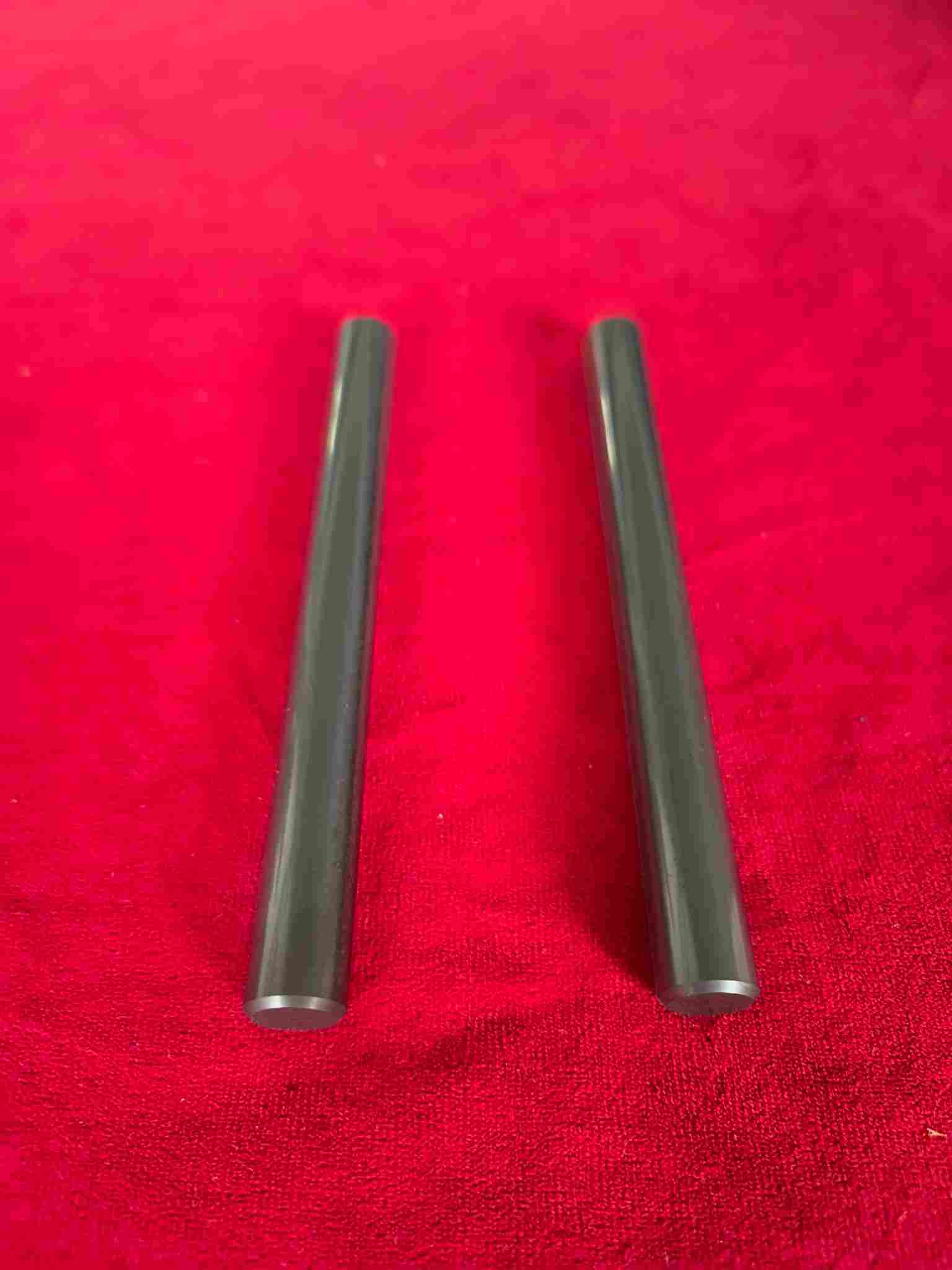

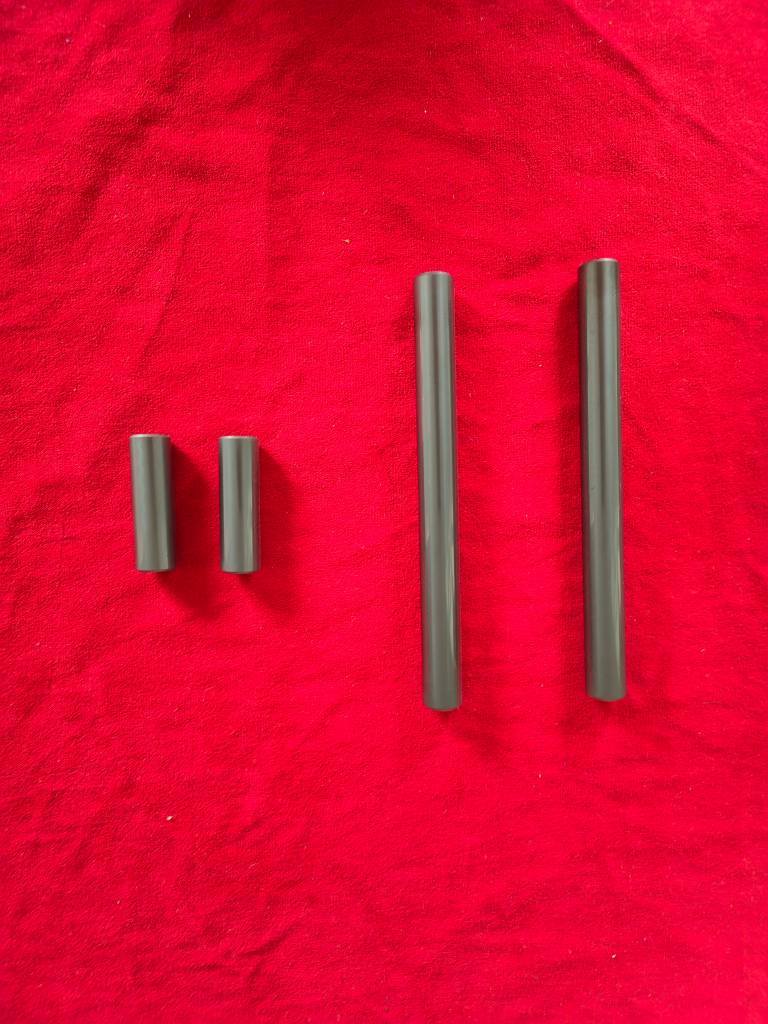

Customized Silicon Carbide Ceramic Shaft Used For Gear Pumps
Product Specifications
| Attribute | Value |
|---|---|
| Name | Ceramic shaft |
| Category | Advanced Structural Ceramic |
| Material | Ceramic SSIC Si3N4 Al2O3 ZrO2 |
| Application | Pumps |
| Precision | Customized, according to the drawings |
| Size | Customized |
| Package | Foam + carton box |
Customized Ceramic Shaft of Silicon Carbide with High Precision
Our silicon carbide shaft is made from highly purified, sub-micron silicon carbide material processed through air pressure sintering. This results in exceptional properties including high hardness (Hv2800), superior wear resistance, resistance to strong acids, alkalis, and salt corrosion, along with excellent high-temperature performance.
Key Features
- Ultra-high hardness & wear resistance: Mohs hardness of 9.5 (second only to diamond), with 5x longer lifespan than metal shafts.
- High-temperature resistance: Stable performance under 1400°C with no deformation.
- Chemical corrosion resistance: Resists strong acids, alkalis, and molten metals, ideal for harsh environments.
- Lightweight & high rigidity: 1/3 the weight of steel with superior stiffness, reducing energy consumption.
- Low thermal expansion: Near-zero expansion ensures dimensional stability in precision applications.
Technical Specifications
| Max Temperature | Up to 1650℃ |
| Density | 3.15-3.18 g/cm³ |
| Thermal Expansion | 4.0 (10-6/℃) |
| Thermal Conductivity | 120 W/m°K |
| Hardness | 2800 HV5 |
| Elastic Modulus | 410 GPa |
| Chemical Stability | Superior resistance to acid and alkali corrosion (including hydrofluoric acid) |
Applications
- Chemical pumps/valves: Corrosion-resistant shafts & seals
- Semiconductor: Wafer handling robots, vacuum chamber components
- Aerospace: Turbine engine components, high-temperature bearings
- New energy: Fuel cell stacks, photovoltaic equipment
Advantages of Ceramic vs Steel Materials
- Superior high-temperature performance with stable mechanical properties
- Better performance in temperature fluctuations due to lower thermal expansion
- Improved anti-bite and anti-stuck performance
- Can operate without lubrication in many applications
- Excellent resistance to acid, alkali, and salt corrosion
- Electrical insulation and anti-static properties
- Non-magnetic properties prevent abrasive particle accumulation
Why Choose Our Ceramic Shafts
Professional Team
With the company logos ZXSQ and CSQ, we hold eleven invention patents for utility models. Our professional team of dozens provides high-quality customized bearing products. Since 1982, we've accumulated over 40 years of experience in ceramic bearing material research, development, and production.
Manufacturing Strength
Our fully automated production line produces 3 million sets annually of various precision levels. We utilize industry-leading firing equipment including a hot isostatic sintering furnace (HIP) from ABB Sweden, capable of reaching temperatures over 2000℃.
