SiC Thrust Washer for Canned Motor Pumps
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | CSQ |
| 인증 | FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 |
| 모델 번호 | 맞춤형 제품 |
| 최소 주문 수량 | 20-50 PC |
| 가격 | negotiable |
| 포장 세부 사항 | 폼+카톤 박스 |
| 배달 시간 | 20-45 일 |
| 지불 조건 | 티/티 |
| 공급 능력 | 한 달에 2000pc |
제품 상세 정보
| 이름 | 맞춤형 세라믹 슬라이딩 베어링 | 범주 | 세라믹 펌프 베어링 |
|---|---|---|---|
| 재료 | 무압력 소결 탄화규소+스테인레스강 | 크기 | 도면에 따라 맞춤화되었습니다 |
| 사용 | 통조림 모터 펌프 | 패키지 | 폼+카톤 박스 |
| 예어 | 통조림 모터 펌프 베어링 | 유형 | 중요한 전송 부분 |
| 강조하다 | SiC thrust washer for motor pumps,ceramic sliding bearing with warranty,SiC washer for canned motor |
||
제품 설명

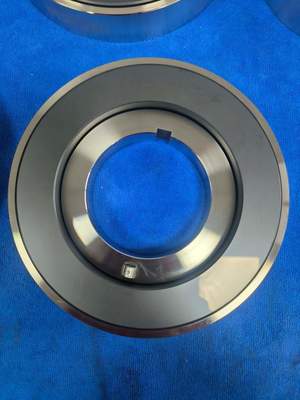

SiC Thrust Washer for Canned Motor Pumps

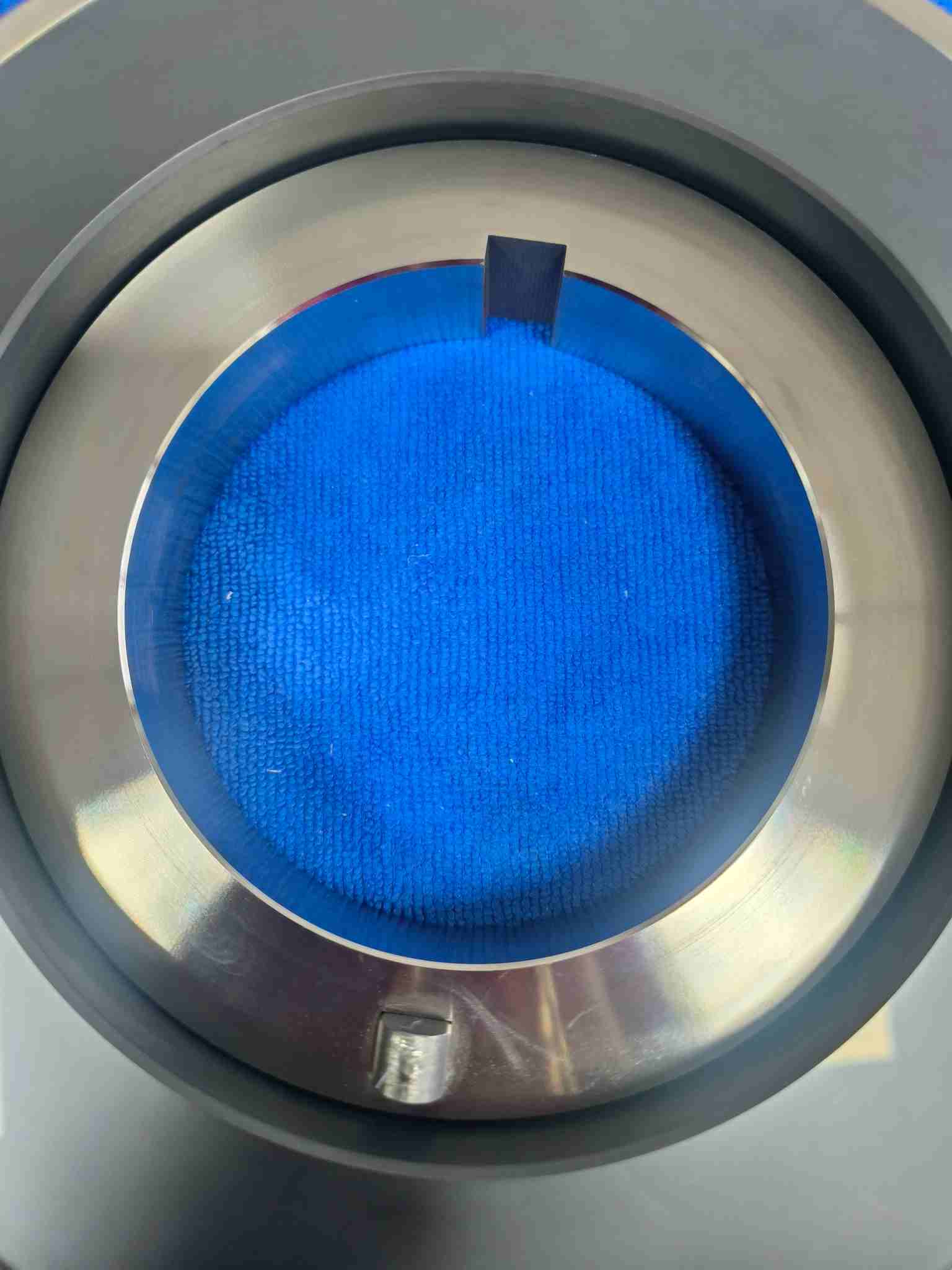

Silicon Carbide (SiC) Sleeve and Thrust Disc Assembly
Description of Sliding Bearing for Canned Motor Pump:
The Sleeve and Thrust Disc Assembly is a part of sliding bearing. It serves as a critical transmission component, functioning as both the support and rotational unit in canned motor pumps. Silicon carbide (SSiC), renowned for its outstanding corrosion resistance, wear resistance, and superior material properties, stands as one of the most ideal sliding bearing materials for such pumps.
Key Features:
- Superior Wear Resistance: High hardness and low friction coefficient of SiC (SSiC/SiC) ensure extended service life.
- Corrosion Resistance: Immune to acids, alkalis, and high-temperature fluids, ideal for aggressive media.
- Thermal Stability: Low thermal expansion maintains dimensional accuracy under high-speed rotation.
- Customizable: Available in standard or integrated designs to fit various pump models.
Typical Uses:
- Chemical process pumps, nuclear coolant systems
- High-purity fluid transfer (e.g., semiconductor-grade chemicals)
- Sealless solutions for extreme pressure/temperature conditions
Main application of Canned Motor Pump:
- The canned motor pump can be used in common corrosive conditions, such as the medium of inorganic matter, acid, alkaline and salt. In such conditions, SSiC (sintered) is taken as standard sliding bearing.
- The canned motor pump can be used in common corrosive conditions, and the medium easy to vaporize.
Key properties of pressureless sintered silicon carbide:
| Max Temperature up to 1650℃ |
| Low density: 3.15-3.18 g/cm³ |
| High strength |
| Low thermal expansion: 4.0 (10⁻⁶/℃) |
| High thermal conductivity: 120 W/m°K |
| High hardness: 2800 HV5 |
| High elastic modulus: 410GPa |
| Superior chemical stability, resistance to acid and alkali corrosion (including hydrofluoric acid) |
Our factory and processing machine:
We have three factories in China, can meet the needs for different customers, and also we have advanced pressing, sintering and processing machines.
