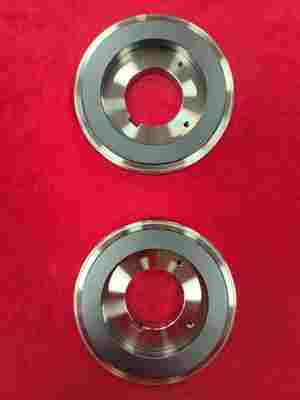

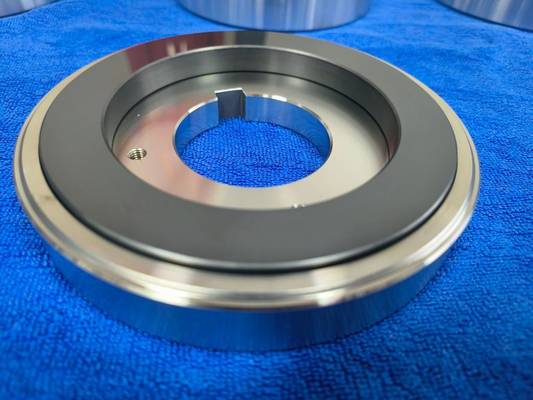

Thrust Washer with Pressureless Sintered Silicon Carbide for Canned Motor Pumps

원래 장소	중국
브랜드 이름	CSQ
인증	FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
모델 번호	맞춤형 제품
최소 주문 수량	20-50 PC
가격	negotiable
포장 세부 사항	폼+카톤 박스
배달 시간	20-45 일
지불 조건	티/티
공급 능력	한 달에 2000pc

무료샘플과 쿠폰을 위해 나와 연락하세요.

왓츠앱:0086 18588475571

위챗: 0086 18588475571

스카이프: sales10@aixton.com

만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.

제품 상세 정보

이름	맞춤형 세라믹 슬라이딩 베어링	범주	세라믹 펌프 베어링
재료	무압력 소결 탄화규소+스테인레스강	크기	도면에 따라 맞춤화되었습니다
사용	통조림 모터 펌프	패키지	폼+카톤 박스
예어	통조림 모터 펌프 베어링	유형	중요한 전송 부분
강조하다	Pressureless Sintered Silicon Carbide Thrust Washer , Thermal Stability Ceramic Sliding Bearing , Customizable Silicon Carbide Bearing

메시지를 남겨주세요

제품 설명

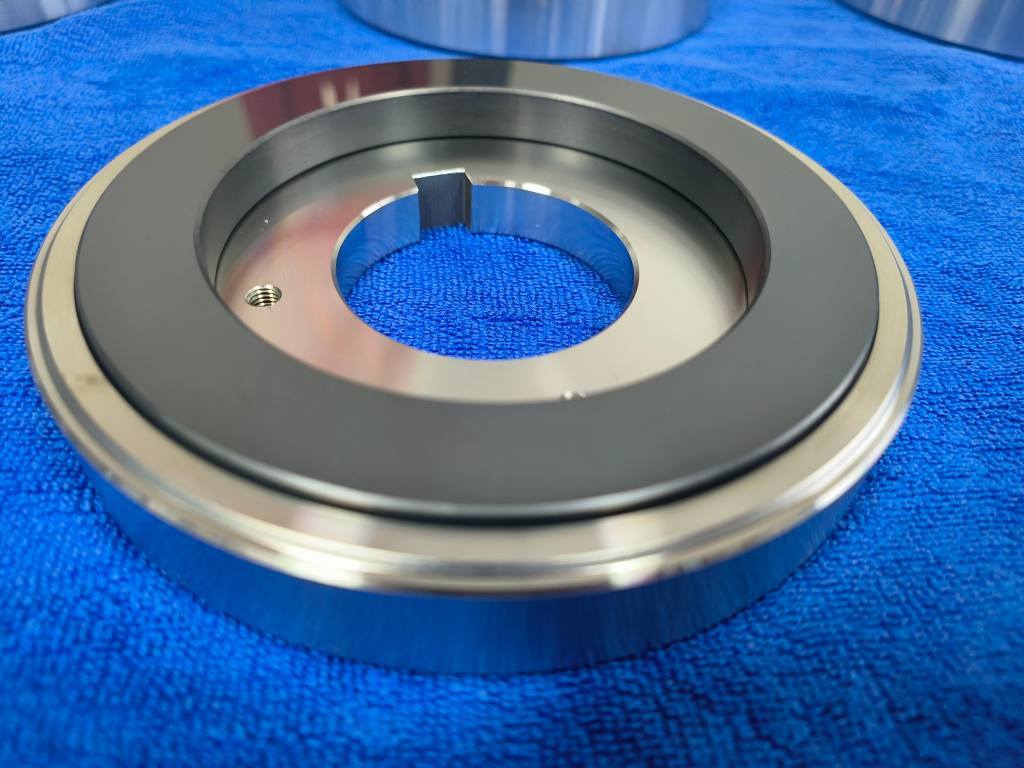

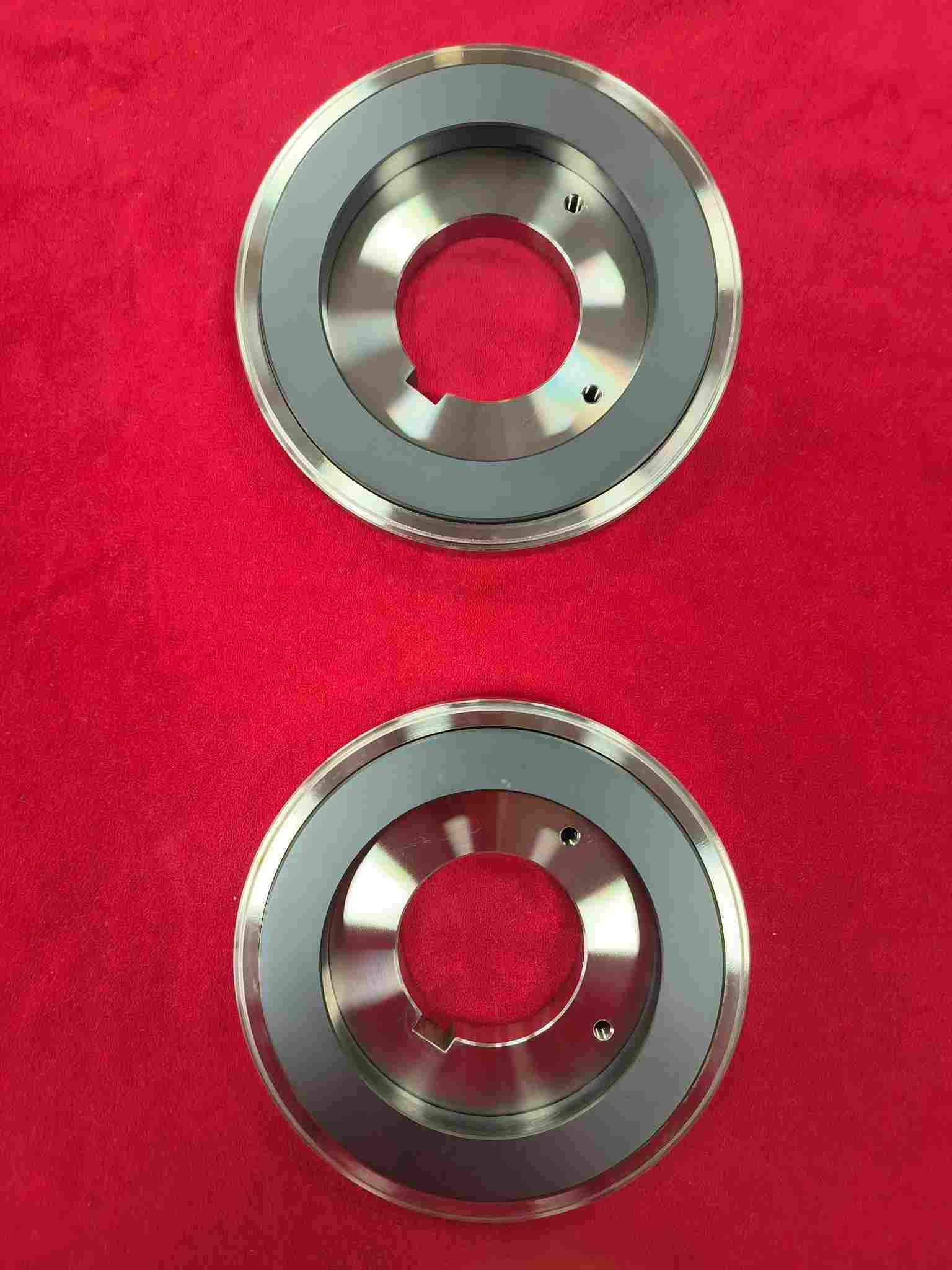

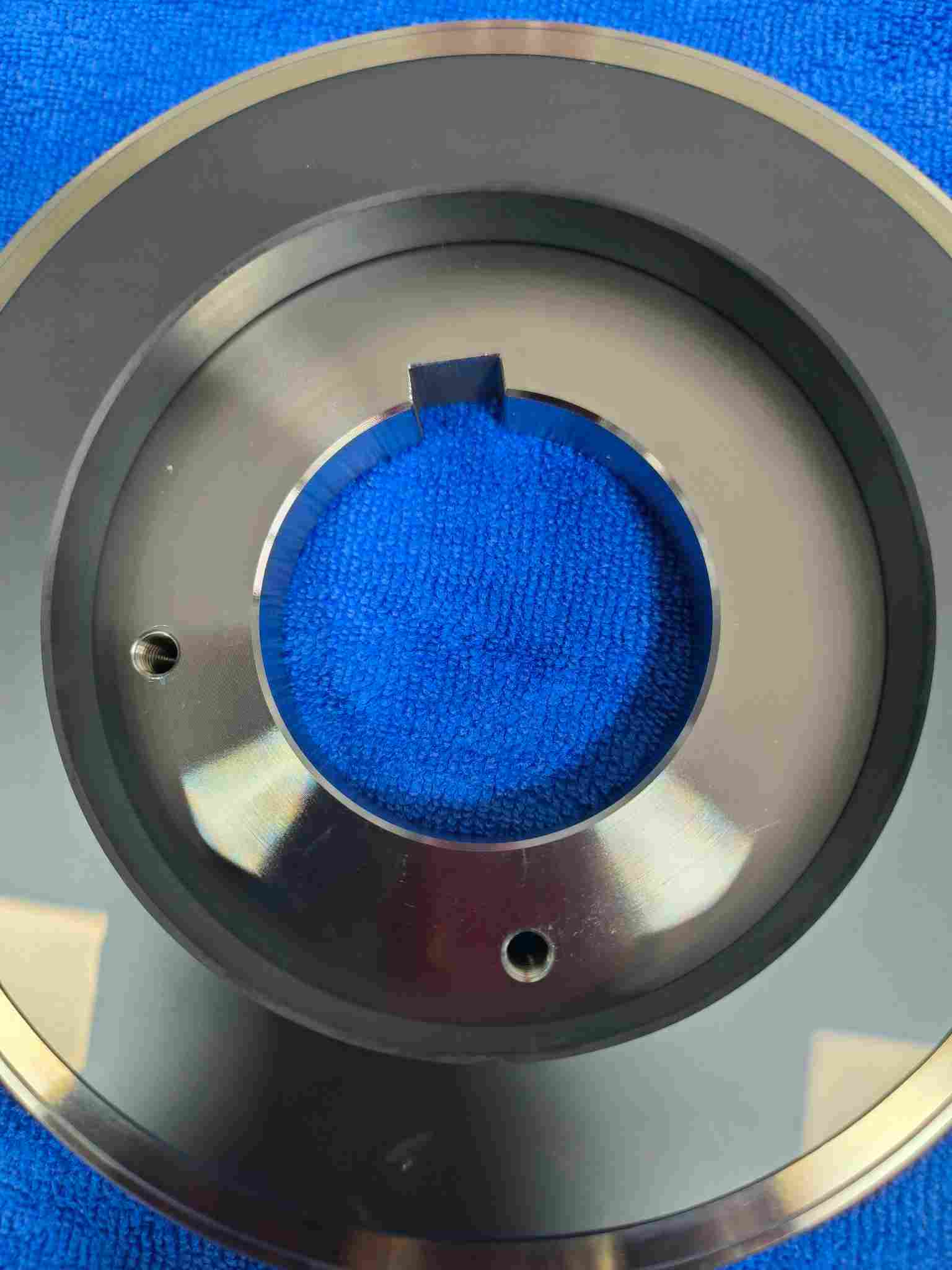

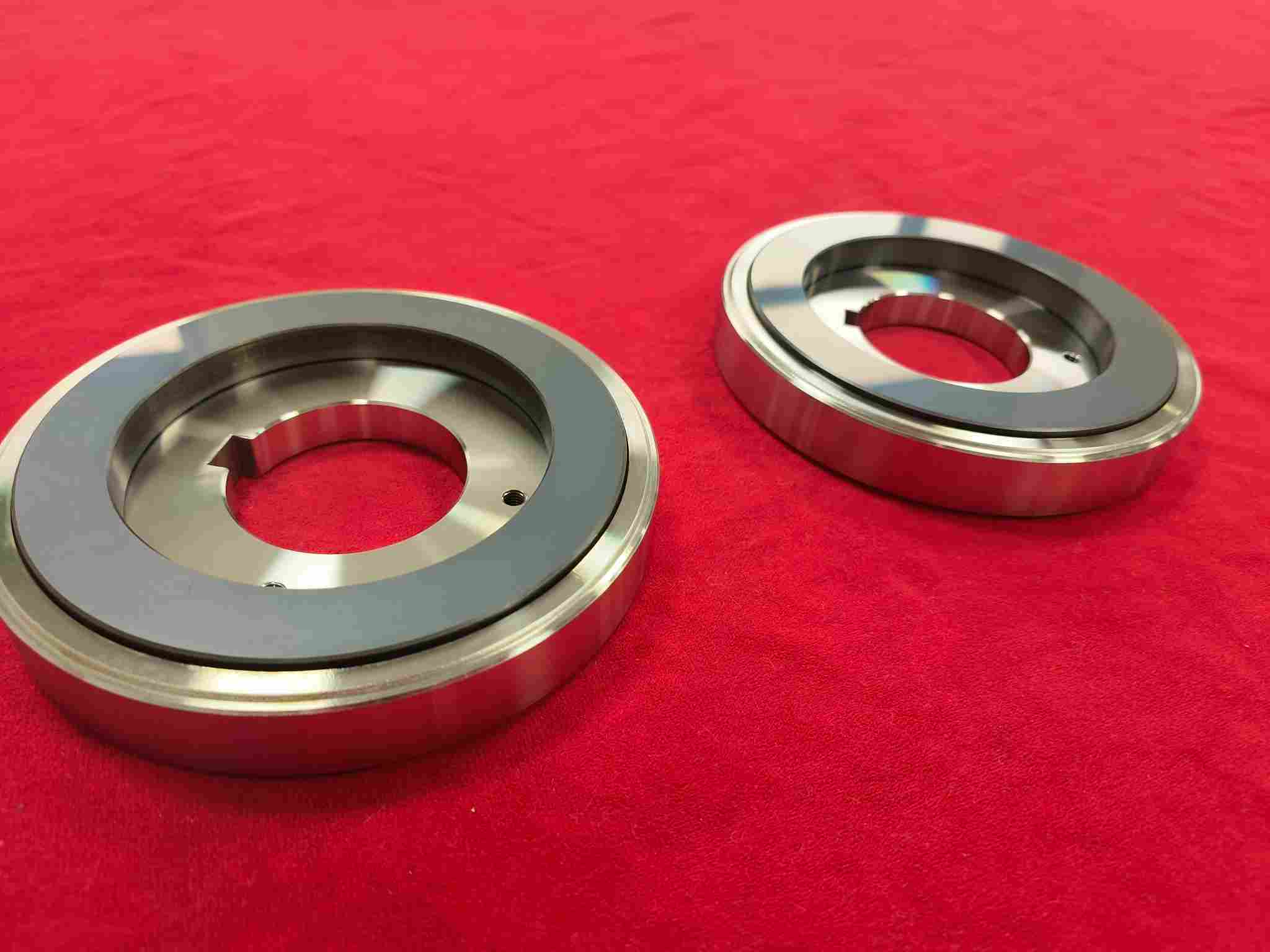

SiC Thrust Washer for Canned Motor Pumps

Silicon Carbide (SiC) Sleeve and Thrust Disc Assembly

The Sleeve and Thrust Disc Assembly is a critical component of sliding bearings, serving as both the support and rotational unit in canned motor pumps. Silicon carbide (SSiC) is renowned for its outstanding corrosion resistance, wear resistance, and superior material properties, making it one of the most ideal sliding bearing materials for such pumps.

Key Features

Superior Wear Resistance: High hardness and low friction coefficient of SiC (SSiC/SiC) ensure extended service life.
Corrosion Resistance: Immune to acids, alkalis, and high-temperature fluids, ideal for aggressive media.
Thermal Stability: Low thermal expansion maintains dimensional accuracy under high-speed rotation.
Customizable: Available in standard or integrated designs to fit various pump models.

Typical Applications

Chemical process pumps, nuclear coolant systems
High-purity fluid transfer (e.g., semiconductor-grade chemicals)
Sealless solutions for extreme pressure/temperature conditions

Main Applications of Canned Motor Pumps

Common corrosive conditions, such as inorganic matter, acid, alkaline and salt media (SSiC is standard sliding bearing material)
Corrosive conditions with media prone to vaporization

Key Properties of Pressureless Sintered Silicon Carbide

Property	Value
Max Temperature	Up to 1650℃
Density	3.15-3.18 g/cm³
Thermal Expansion	4.0 (10⁻⁶/℃)
Thermal Conductivity	120 W/m°K
Hardness	2800 HV5
Elastic Modulus	410GPa
Chemical Stability	Superior resistance to acid and alkali corrosion (including hydrofluoric acid)
