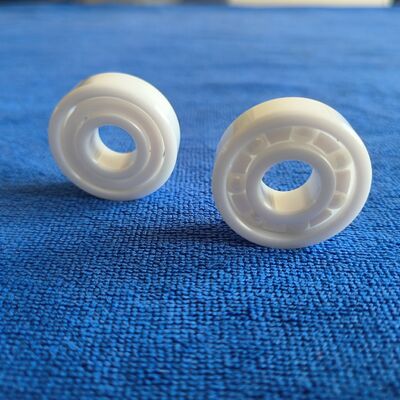

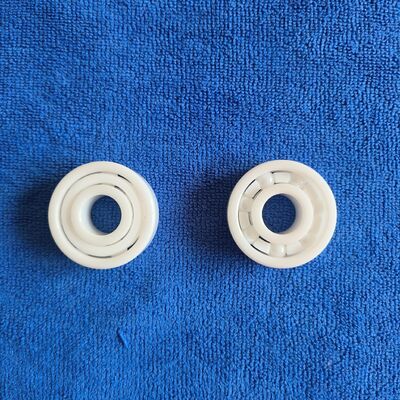

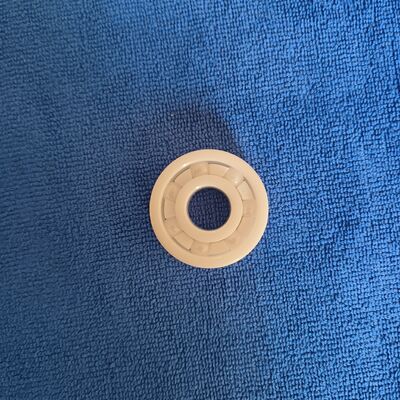

6201 Full Zirconia Ceramic Bearing with PTFE Cage 12mm Inner Diameter 32mm Outer Diameter 10mm Width
| 원래 장소 | 베이징, 중국 |
|---|---|
| 브랜드 이름 | CSQ |
| 인증 | FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 |
| 모델 번호 | 6201ce |
| 최소 주문 수량 | 20-50 PC |
| 가격 | negotiable |
| 포장 세부 사항 | 폼+카톤 박스 |
| 배달 시간 | (교섭할 수 있는) 25-45 작업 일수 |
| 지불 조건 | 티/티 |
| 공급 능력 | 달 당 2000 PC |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 재료 | ZRO2 | 베어링 유형 | 풀 볼 베어링 |
|---|---|---|---|
| 퍼시젼 | P6/ABEC3 내지 P4/ABEC7 | 특성 | 장기적 삶, 저소음,고 정밀도 |
| 어플리케이션 | 스케이트보드, 롤러는 스케이트를 타고 펌프를 급수합니다 | 정리 | C0-C5 |
| 행의 수 | 단일 행 | 구조 | 깊은 그루브 |
| 내경 | 12mm | 직경 | 32mm |
| 너비 | 10mm | ||
| 강조하다 | 12mm Inner Diameter Zirconia Ceramic Bearing,32mm Outer Diameter Full Ceramic Bearing,10mm Width 6201 Ceramic Bearing |
||
필요한 제품을 선택하고 게시판에서 당사와 소통 할 수 있습니다.
제품 설명
6201 Full Zirconia Ceramic Bearing with PTFE Cage
Product Overview
The 6201 Full Zirconia Ceramic Bearing is a high-performance deep groove ball bearing manufactured to international standard 6201 dimensions. It features inner ring, outer ring, and rolling elements made from high-purity Zirconia Ceramic, combined with a PTFE cage.
This unique material combination makes it the ultimate solution for extreme operating conditions involving corrosion, dry-running, high speeds, and electrical insulation, effectively solving common failures of traditional steel bearings related to corrosion, electrical erosion, and lubricant contamination.
Material and Properties
- Rings & Balls: High-Purity Zirconia Ceramic
- Exceptional corrosion resistance: Resists virtually all strong acids, alkalis, and organic solvents
- Electrical insulator: Prevents electrical pitting from VFD drives
- Non-magnetic: Ideal for precision instruments
- Low density & high hardness: 45% lighter than steel with excellent wear resistance
- High toughness: Superior impact resistance due to transformation toughening
- Cage: PTFE
- Superior self-lubrication with the lowest coefficient of friction
- Excellent chemical resistance matching Zirconia
- Non-stick surface with high-temperature capability (-200°C to +250°C)
The combination of PTFE cage with Zirconia balls results in very low friction and wear, outperforming metal-caged bearings significantly in dry or boundary lubrication states.
Working Principle
As a deep groove ball bearing, it supports shafts and reduces rotational friction via rolling contact. Its special materials introduce unique operational mechanisms:
- Creates an inert environment immune to chemical corrosion
- Enables maintenance-free operation with self-lubricating PTFE cage
- Blocks destructive currents, eliminating electrical pitting
- Handles high-speed operation with reduced centrifugal force
Technical Specifications
| Parameter | Description |
|---|---|
| Material | Ceramic: ZrO2 |
| Corrosion resistance | Excellent |
| Friction | Lower than steel |
| Wear resistance | Excellent |
| Temperature resistance | High |
| Strength | Higher than steel |
| Durability | Excellent |
| Weight | Lighter than steel |
| Precision | High |
| Biocompatibility | Some ceramic materials are biocompatible |
Application Scenarios
- Chemical & plating equipment: Resistant to strong acids and alkalis
- Food & pharmaceutical machinery: Meets hygiene requirements for lubricant-free operation
- Variable frequency drive motors: Serves as insulating bearing
- Semiconductor manufacturing: Prevents metallic contamination
- Precision instruments & medical devices: Non-magnetic, low-friction components
- High-temperature & vacuum environments: Reliable performance in extreme conditions
Why Choose Us
Professional Team
With our company logos ZXSQ and CSQ, we possess eleven invention patents for utility models. Our high-quality professional team provides customized bearing products according to customer requirements.
Since 1982, we have accumulated over 40 years of experience in ceramic bearing research, development, and production, becoming a leading enterprise in China's ceramic bearing market.
Strength Factory
We operate a fully automatic grinding and assembling production line with an annual output of 3 million sets of P5 and P4 precision level bearings. Our equipment includes a hot isostatic sintering furnace (HIP) imported from ABB Sweden, capable of reaching temperatures over 2000℃.
Master Raw Material Production Technology
We cooperate with raw material suppliers and maintain production technology to ensure product quality stability unaffected by international price fluctuations.
Frequently Asked Questions
Q: Who are we?
A: We are a factory in Beijing, China with over 40 years of experience producing ceramic bearings, having established cooperative relations with many domestic and foreign companies.
Q: How can we guarantee quality?
A: We produce samples before mass production, inspect products with precision equipment, and use double packaging (foam and carton) to ensure product quality.
Q: What can you buy from us?
A: Ceramic deep groove ball bearings, ceramic angular contact ball bearings, hybrid ceramic ball bearings, ceramic linear bearings, and various ceramic balls.
Q: Why should you buy from us not from other suppliers?
A: We are an industry and trade integrated company with three factories, modern production and inspection equipment, offering better delivery dates and product quality.
Q: What service can we provide?
A: We provide high quality products, customized services, and samples for customer confirmation.
Welcome Your Enquiry
We supply high quality bearings. For purchasing or price inquiries, please contact us. As a professional bearing company integrating R&D, production, sales, and service, we carefully manufacture each set of bearings using high quality raw materials.
We adhere to customer demand as our guidance, striving to provide quality products and after-sales service, creating value for customers as their partner. Welcome to discuss cooperation!
